Triumph Bonneville - Airbrush illustration © Les Still

Specification - Triumph T120 Bonneville (1960)
Engine - Triumph 649cc. overhead valve, twin cylinder. 71mm x 82mm. Light Alloy cylinder head, Compression 8.5 to 1. Dry sump lubrication. Carburettors - Two Amal monoblocs. Electrical - Lucas RM19 Alternator, 6 volt 12 amp hour battery. Coil ignition with auto advance. 7in.headlamp with 30/24 watt main bulb. Transmission - Triumph four-speed gearbox in unit with engine. Ratios 11.81 to 1, 8.17 to 1, 5.76 to 1, 4.84 to 1. Primary drive - duplex chain. Wet clutch. Capacities - 4 Gallons petrol, 5 pints oil Tyres Front 3.25 x 18in. rear 3.50 x 18. Brakes - Front 8in drum, rear 7in. drum. Dimensions - Wheelbase 55in. ground clearance 5in. seat height 31in.
Makers - Triumph Engineering Co. Ltd., Allesley, Coventry.

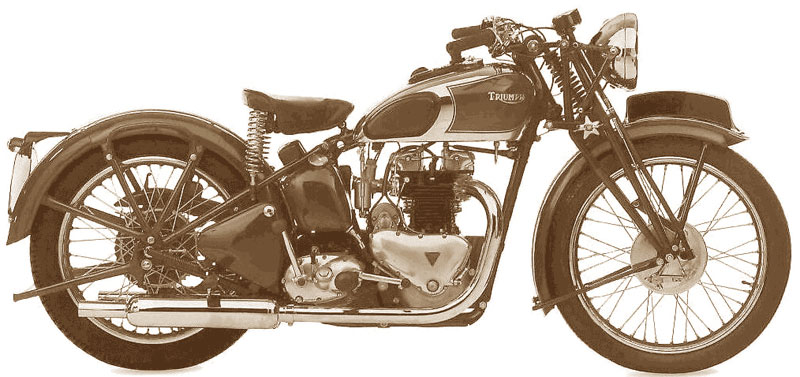

Triumph Speedtwin 1939

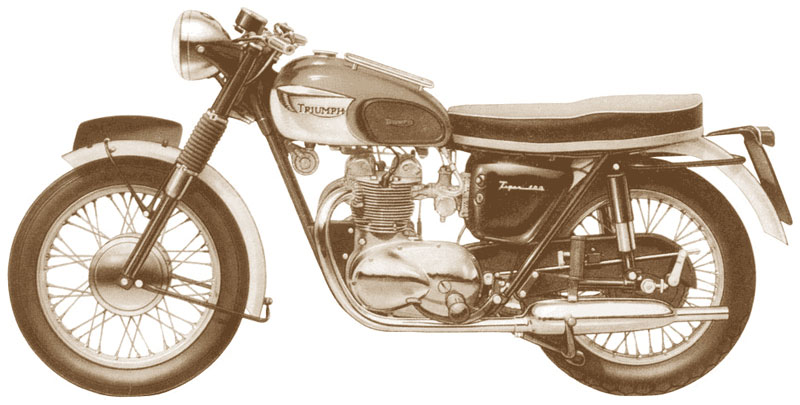

Triumph Tiger 100 1966

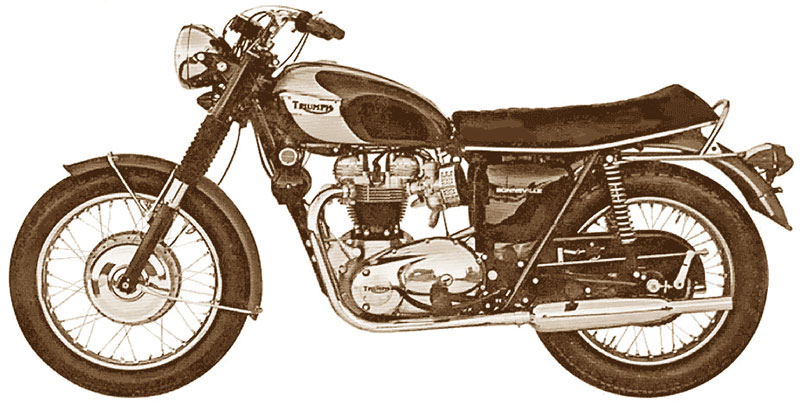

Triumph 650 Bonneville 1970

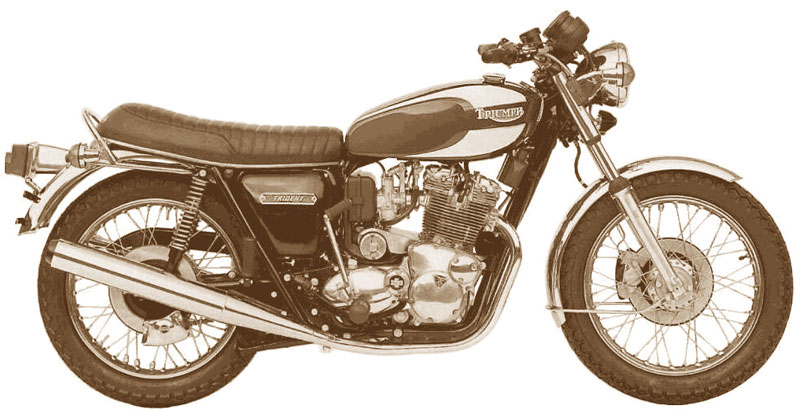

Triumph T160 1975

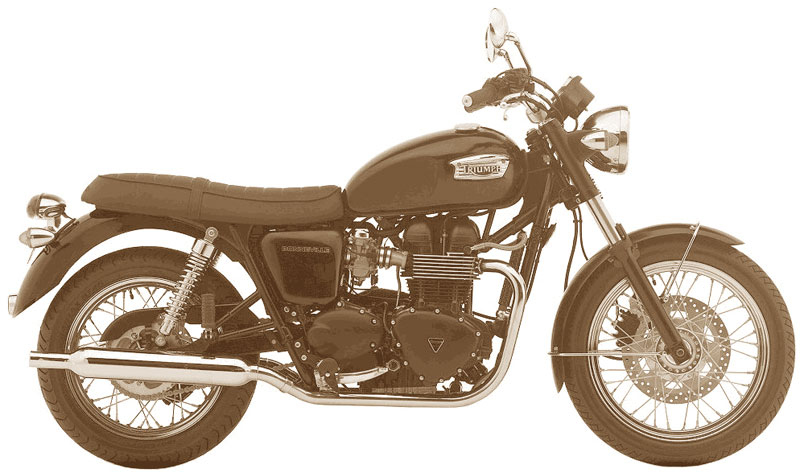

Triumph Bonneville 2003
